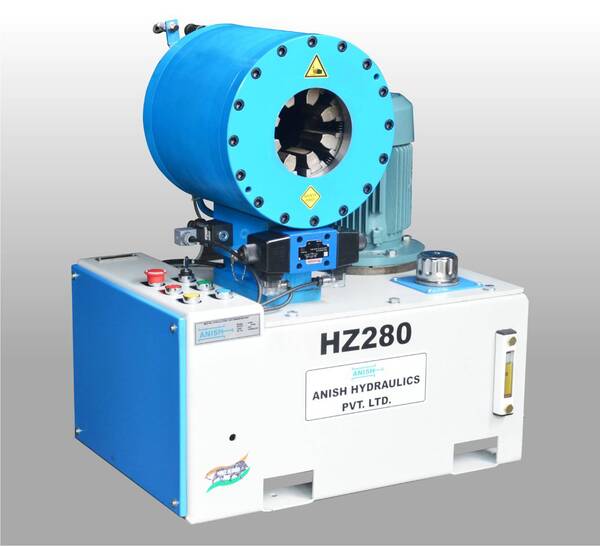

HORIZONTAL TYPE 4" CRIMPING MACHINE.

Nut Crimping machine

Crimping Range----------------------1/4" - 2" R2 ---------------------Upto 1-1/4" Spiral Crimping Force-----------------------250 Ton 3 Electric Motor Capacity---------2HP 4 No. of Die sets---------------------09 sets 5 No. of Segments------------------08 Nos. 6 Hose Feeding----------------------Front/Rear 7 Operating Voltage---------------AC-230V(1Ph) AC-415V(3Ph) 8 Controls Electro------------------Hydraulic 9 Cycle Time-------------------------16 sec. 10 Master Die Shoe Length----90mm 11 Overall Dimension(mm)-----600X760X925 12 Approximate weight ---------300Kg 13 Oil Specification----------------ISO VG68 Hydraulic Oil 14 Oil Tank capacity--------------40 L Hydraulic
